    N Series Cantilever Load Cells

  • Cantilever Load Cells

    N50 Cantilever Load Cell

Cantilever Load Cells

Designed for single sided machine frames such as label, film, foil, and other narrow webs, N Series Load Cells, feature an anti-deflection design, semiconductor strain gauge technology and eliminate web steering for greater consistency and quality in your process.

  • Overview
  • Product Options & Drawings
  • Documents

All-In-One System

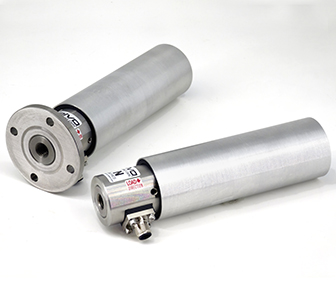

N-Series Cantilever Load Cells combine an idler roller and load cell in one complete unit so it arrives ready to install and use.

Industry Leading Resolution
The difference between profit and scrap can come down to how sensitive your load cells are to the slightest changes in tension. Montalvo leads the industry in load cell resolution & sensitivity. No one makes a better load cell.

Semi-Conductor Strain Gauge Technology
Four semi-conductor strain gauges provide 25x the sensitivity and 10x longevity compared to foil gauges for greater precision & accuracy.

Anti-Deflection Design
Produce uniform, consistent rolls; every time.

Web Steering Eliminated
Innovative shaft and bearing design eliminates web steering so your machine is as productive & profitable as possible. Keep your web & your profits on track!

Customized Lengths, Diameters & Finishes
N-Series Cantilever Load Cells are available in a variety of roll lengths, diameters, and finishes to meet the specific needs of your application.

Easy Installation with Multiple Mounting Options
N-Series Cantilever Load Cells arrive ready to use. Take out of box and mount to frame via either Standard or Flange Mounts.

Enhanced Reliability
Maximum signal feedback accuracy from zero to maximum tension (full scale linear output) and high repeatability creates one of the most reliable load cells in the industry.

Maximum Protection
360° Overload Protection, Radial Stops and Dust Proof (IP54) construction combine to give your load cell, your machine & you, maximum protection and peace of mind.

For additional information on N-Series Cantilever Load Cells please download the N Series Datasheet.

For roller diameters less than 50mm please view the X Series Load Cell


N2 Cantilever Load Cell

50mm (2″) diameter roller. Provides a maximum tension of 100 lbs and can be customized by diameter, roller length, and roller finish.

Available Models & Drawings

Standard Mount

Drawings
PDF DWG SLDPRT

Model Load Rating – lbs (N) Available Roller Lengths (mm) Price
N2-S-10 10 (50) 150 / 200 / 250 / 300 / 350 / 400 Price Request
N2-S-25 25 (125) 150 / 200 / 250 / 300 / 350 / 400 Price Request
N2-S-50 50 (250) 150 / 200 / 250 / 300 Price Request
N2-S-100 100 (500) 150 / 200 / 250 / 300 Price Request

Flange Mount

Drawings
PDF DWG SLDPRT

Model Load Rating – lbs (N) Available Roller Lengths (mm) Price
N2-F-10 10 (50) 150 / 200 / 250 / 300 / 350 / 400 Price Request
N2-F-25 25 (125) 150 / 200 / 250 / 300 / 350 / 400 Price Request
N2-F-50 50 (250) 150 / 200 / 250 / 300 Price Request
N2-F-100 100 (500) 150 / 200 / 250 / 300 Price Request

*If you require a drawing of a different roller length please contact us.


N3 Cantilever Load Cell

75mm (3″) diameter roller. Provides a maximum tension of 200 lbs and can be customized by diameter, roller length, and roller finish.

Available Models & Drawings

Standard Mount

Drawings
PDF DWG SLDPRT

Model Load Rating – lbs (N) Available Roller Lengths (mm) Price
N3-S-10 10 (50) 200 / 250 / 300 / 350 / 400 Price Request
N3-S-25 25 (125) 200 / 250 / 300 / 350 / 400 Price Request
N3-S-50 50 (250) 200 / 250 / 300 / 350 / 400 Price Request
N3-S-100 100 (500) 200 / 250 / 300 / 350 / 400 Price Request
N3-S-150 150 (750) 200 / 250 / 300 / 350 / 400 Price Request
N3-S-200 200 (1,000) 200 / 250 / 300 / 350 / 400 Price Request

Flange Mount

Drawings
PDF DWG SLDPRT

Model Load Rating – lbs (N) Available Roller Lengths (mm) Price
N3-F-10 10 (50) 200 / 250 / 300 / 350 / 400 Price Request
N3-F-25 25 (125) 200 / 250 / 300 / 350 / 400 Price Request
N3-F-50 50 (250) 200 / 250 / 300 / 350 / 400 Price Request
N3-F-100 100 (500) 200 / 250 / 300 / 350 / 400 Price Request
N3-F-150 150 (750) 200 / 250 / 300 / 350 / 400 Price Request
N3-F-200 200 (1,000) 200 / 250 / 300 / 350 / 400 Price Request

*If you require a drawing of a different roller length please contact us.


N4 Cantilever Load Cell

100mm (4″) diameter roller. Provides a maximum tension of 200 lbs and can be customized by diameter, roller length, and roller finish.

Available Models & Drawings

Standard Mount

Drawings
PDF DWG SLDPRT

Model Load Rating – lbs (N) Available Roller Lengths (mm) Price
N4-S-25 25 (125) 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 Price Request
N4-S-50 50 (250) 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 Price Request
N4-S-100 100 (500) 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 Price Request
N4-S-150 150 (750) 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 Price Request
N4-S-200 200 (1,000) 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 Price Request

Flange Mount

Drawings
PDF DWG SLDPRT

Model Load Rating – lbs (N) Available Roller Lengths (mm) Price
N4-F-25 25 (125) 200 / 250 / 300 / 350 / /400 / 450 / 500 / 550 / 600 Price Request
N4-F-50 50 (250) 200 / 250 / 300 / 350 / /400 / 450 / 500 / 550 / 600 Price Request
N4-F-100 100 (500) 200 / 250 / 300 / 350 / /400 / 450 / 500 / 550 / 600 Price Request
N4-F-150 150 (750) 200 / 250 / 300 / 350 / /400 / 450 / 500 / 550 / 600 Price Request
N4-F-200 200 (1,000) 200 / 250 / 300 / 350 / /400 / 450 / 500 / 550 / 600 Price Request

*If you require a drawing of a different roller length please contact us.


Custom N-Series

Any of our N-Series Cantilevered Load Cells can be customized to meet the needs of your application. We custom build your N-Series Load Cell based on the roll diameter, roll length, and roll finish that you specify.

If interested in a custom N-Series Cantilevered Load Cell please use the Request Custom N-Series Load Cell Form below and specify your needed diameter, length, and finish.

Request Custom N-Series Load Cell
