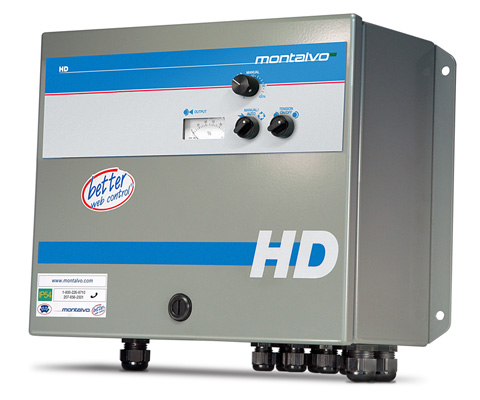

Add precision control to your Dancer application with the D3400HD. Offering a range of unwind features and functionality the D3400 is compatible with a range of feedback sources to easily integrate into your current process. The D3400HD has been replaced by the Z4-UD.
- Documents & Drawings
Unwind Tension Control
Soft Start: Minimizes tension upsets during start up
Anti-Coast: Prevents web tension from dropping during rapid deceleration
Web Break Detection: Programmable alarms or stop machine should a break occur, reducing waste and productivity loss
Splice: Maintains tension on materials during flying splice, resulting in successful splices without tension changes
Compatible with a range of feedback sources: ultra-sonic sensors, dancer position sensors, proximity switches, laser sensors, and potentiometers.
Set It & Forget It Technology
With a few key set-up parameters your machine operates at maximum efficiency without constant monitoring.
Range Expansion The D-3400HD Tension Controller supports range expansion, utilizing Montalvo’s P-3000HD, to expand the capabilities or your brake system without sacrificing precise control. Learn More
Progressive Gain Technology
Prevents over compensation of the dancer/rider arm when detecting an error in tension to ensure uniform control.
Responsive & Stabile
Progressive PID Circuitry gives you the responsiveness you require at full roll with the necessary stability at the core.
Transferable Memory Card
Keep stored settings and transfer them should you ever need to replace the controller
Multiple Mounting Options
Available in a dust proof, water resistant heavy duty enclosure or as a standalone circuit board
For additional information on the D-3400HD Dancer Tension Controller please download the D-3400HD Datasheet.
- Datasheet – D-3400HD (795.6 KB)
- Operators Guide – D-3400HD (49.1 KB)
- Manual – 3400HD Series Unwind (9.5 MB)
