A4 Amplifier v1.3 Release

Improved Compatibility and Performance

The A4 Digital Amplifier blends performance and convenience in one compact package. Compatible with both semiconductor strain gauge and foil gauge load cells The A4 delivers push button calibration, push button zero-ing, automatic load cell fault detection and USB integration for remote calibration and monitoring.A4 Digital Amplifier

Available now, the A4 Amplifier v1.3 includes improvements and enhancements for increased compatibility, performance, and accessibility including:

  • Added Windows 8 and 10 Support
  • Added Filtering Option
  • Added Dead Band Feature
  • Improved Accessibility
  • Improved Responsiveness
  • Improved Calibration Functionality
  • Improved PC Connectivity

Additional A4 Amplifier Features Include:

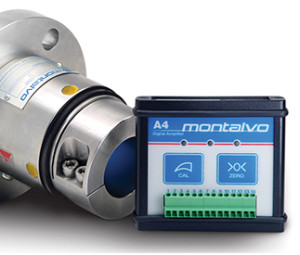

A4 Load Cell Signal Amplifier

A4 Load Cell Signal Amplifier

  • Push Button Calibration
  • Push Button Zero-ing
  • Automatic Load Cell Fault/Damage Detection
  • Powers Digital & Analog (needle type) Meter
  • Integrates with Both Drives & PLC’s
  • 3 Channel Output: Left, Right, and Total
  • Remotely Calibrate & Graphically Monitor Raw Inputs from Your Compute
  • Compatible with Semiconductor Strain Gauge and Foil Gauge Load Cells
  • 0-10V or 4-20mA outputs
  • Full Bridge and Half Bridge Compatible
  • 24 Volt Operation
  • DIN Rail mounting for easy installation

Check out the A4 Amplifier Product Page for more information or contact your local Montalvo Applications Specialist.
