CD Tension Clutch

CD Tension Clutch

The cost effective choice for light/medium duty applications requiring precise tension control at the rewind. CD Tension clutches feature a wide torque range & torque capacity to meet the specific needs of your application. Finish strong with the CD Clutch.

  • Overview
  • Models & Drawings
  • Documents

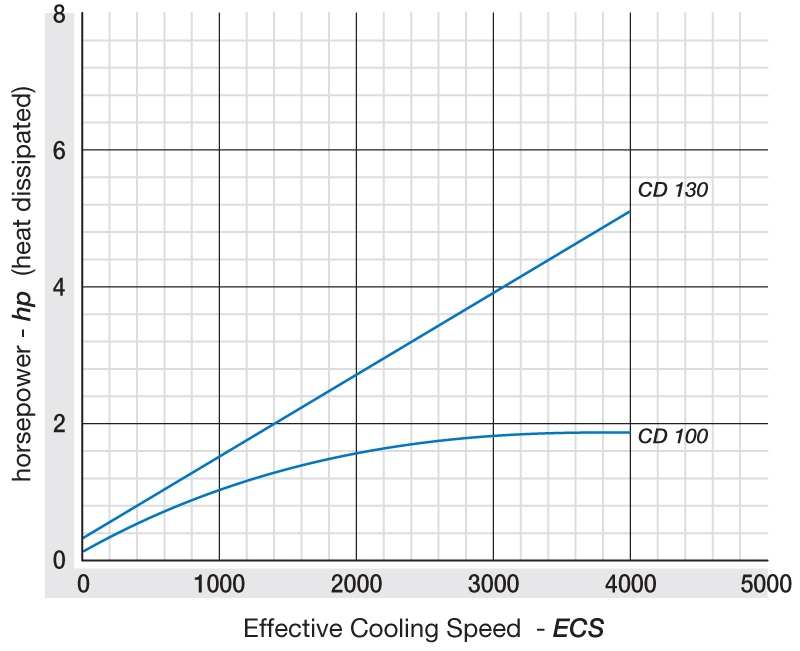

High Heat Dissipation & High Performance
Ensure your process starts off right with an industry leader in light duty clutch performance. Clutch fin design ensures maximum heat dissipation extending the performance & service life of your C Series Tension Clutch.

Low Maintenance
C Series Tension Clutches are designed to maximize your productivity and thus require little maintenance with an easy & quick pad changing process.

Cost Effective
C Series Tension Clutches are one of the most cost effective clutch options in the industry but without sacrificing performance & control.

High Quality Application Finishes
Profit is determined at the rewind. Make sure your application is finishing at its best to ensure high quality end product. Finish it right with Montalvo –inventors of the air cooled brake & clutch, innovators in the industry.

Bi-Directional Operation
Rewind from the top or bottom of your roll.

Low Profile Compact Design
A compact, low profile design makes the C Series ideal for tag, label, film, slitter-rewinders, flexo printing, nonwovens, textiles and other light/medium scale applications.

High Capacity, Low Inertia
A wide torque range & torque capacity expands the capabilities of your application while eliminating residual drag.

For additional information on the C Series Tension Clutch please download the C Clutch Datasheet.

CD-100 Tension Clutch

The CD100 Model of Tension Clutch is capable of providing up to 600 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (2-4) and the friction pad coefficient.

Overview

Total Torque Range (in-lb) Shaft Size Range Product Diameter Drawings Price
0.88 – 600 .75″ – 1.375″ 7″ PDF DWG SLDPRT STEP Price Request

Torque Ranges

Model Clutch Torque by Friction Pad Coefficient
0.10 Coef 0.30 Coef 0.45 Coef **
Min Torque (in-lb) Max Torque (in-lb) Min Torque (in-lb) Max Torque (in-lb) Min Torque (in-lb) Max Torque (in-lb)
CD-102 0.88 66 2.66 200 4.00 300
CD-103 1.32 100 3.99 300 6.00 450
CD-104 1.76 132 5.32 400 8.00 600

*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
** 0.45 Coef Pads are the standard pads supplied with all brakes.


CD-130 Tension Clutch

The CD130 Model of Tension Clutch is capable of providing up to 1,200 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (2-6) and the friction pad coefficient.

Overview

Total Torque Range (in-lb) Shaft Size Range Product Diameter Drawings Price
01.16 – 1,200 1″ – 1.375″ 8.13″ PDF DWG SLDPRT STEP Price Request

Torque Ranges

Model Clutch Torque by Friction Pad Coefficient
0.10 Coef 0.30 Coef 0.45 Coef **
Min Torque (in-lb) Max Torque (in-lb) Min Torque (in-lb) Max Torque (in-lb) Min Torque (in-lb) Max Torque (in-lb)
CD-132 1.16 88 3.40 266 5.20 400
CD-133 1.74 132 5.10 400 7.80 600
CD-134 2.32 176 6.80 533 10.4 800
CD-136 3.48 264 10.2 885 15.6 1,200

*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
** 0.45 Coef Pads are the standard pads supplied with all brakes.
