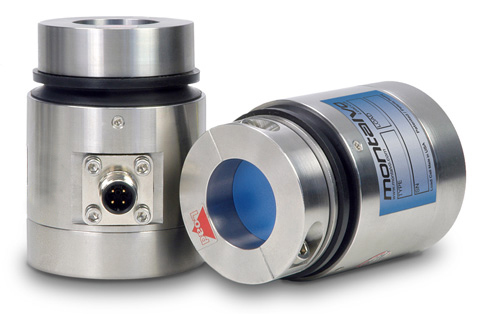

    Dead Shaft Idler Load Cell

  • Dead Shaft-Idler Load Cells

    ES Dead Shaft/Idler Load Cells

  • Dead Shaft-Idler Load Cells

    Available Mounts: Standard, Flange, Split Pillow Block

Dead Shaft-Idler Load Cells

A stainless steel body and IP54 rating, combined with industry leading sensitivity make the ES Series Dead Shaft Idler load cell a performance and reliability all star, making your process more efficient and more productive.

  • Overview
  • Product Options & Drawings
  • Documents

Stainless Steel
A 100% Stainless Steel body & dust proof (IP54) rating makes the ES Dead Shaft/Idler load cells more durable and more rugged for an extended, dependable service life.

Industry Leading Resolution
ES Dead Shaft/Idler Load Cells lead the industry in resolution & sensitivity. No one makes a better load cell.

Multiple Mounting Options
Standard, Flange, or Split Pillow Block mounts are available for either inside machine frame to frame, or on top of frame mounting.

Immediate Delivery
Standard ES Dead Shaft/Idler Load Cells offer a faster delivery time from the day of order.*

*Standard ES-I Load Cells have a 6 o’clock connector position and feature one of the following load ratings: Size 0-50lbs, Size 0-150lbs, Size 2-150lbs, Size 2-500lbs

M12 Connector
Industry standard connector gives you more flexibility in your cable choice.

Mechanical Variance Compensation
Unique design compensates for shaft expansion & misalignment so performance is never sacrificed in the event of small installation variables.

360° Overload Protection
ES Dead Shaft/Idler Load Cells feature 300% overload protection from any angle. Montalvo keeps your load cells protected & your machines running.

For additional information on the ES Dead Shaft/Idler Load Cell download the Datasheet.

Standard Mount

Mounts via a single screw in the rear center of the back of the load cell, typically between machine frames where application forces are 500 lb (2225 N) or less.

Standard ES-I Load Cells are available to ship within 1 week from the time an order is received *

Available Load Ranges & Drawings

Size 0 (shaft ends up to ø 1.125 inches max.)

Model Load Range – lbs (N) Max. Shaft ø in (mm) Drawings Price
ES-I-S0-10 0.002 (0.01) – 10 (50) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-S0-25 0.002 (0.01) – 25 (125) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-S0-50 * 0.01 (0.04) – 50 (250) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-S0-75 0.01 (0.04) – 75 (375) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-S0-100 0.04 (0.18) – 100 (445) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-S0-150 * 0.44 (1.96) – 150 (750) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request

Size 1 (shaft ends up to ø 1.5 inches max.)

Model Load Range – lbs (N) Max. Shaft ø in (mm) Drawings Price
ES-I-S1-100 0.07 (0.31) – 100 (445) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-S1-150 0.11 (0.49) – 150 (750) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-S1-250 0.176 (0.78) – 250 (1250) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request

Size 2 (shaft ends up to ø 1.5 inches max.)

Model Load Range – lbs (N) Max. Shaft ø in (mm) Drawings Price
ES-I-S2-75 0.005 (0.02) – 75 (375) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-S2-100 0.07 (0.31) – 100 (445) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-S2-150 * 0.11(0.49) – 150 (750) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-S2-250 0.176 (0.78) – 250 (1250) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-S2-500 * 0.218 (0.97) – 500 (2500) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request

*Standard ES-I Load Cells feature a 6 o’clock connector position and are available in the four load ranges marked above with *. Other connector positions and load ranges are available by request but will be subject to non standard lead times.


Flange Mount

Mounts to a machine frame via a 4 bolt flange collar. This mounting style may also be required when application forces exceed the capacity of the Standard Mounting Style.

Standard Flange Mount ES-I Load Cells are available to ship within 1 week from the time an order is received *

Available Load Ranges & Drawings

Size 0 (shaft ends up to ø 1.125 inches max.)

Model Load Range – lbs (N) Max. Shaft ø in (mm) Drawings Price
ES-I-F0-10 0.002 (0.01) – 10 (50) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-F0-25 0.002 (0.01) – 25 (125) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-F0-50 * 0.01 (0.04) – 50 (250) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-F0-75 0.01 (0.04) – 75 (375) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-F0-100 0.04 (0.18) – 100 (445) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-F0-150 * 0.44 (1.96) – 150 (750) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request

Size 1 (shaft ends up to ø 1.5 inches max.)

Model Load Range – lbs (N) Max. Shaft ø in (mm) Drawings Price
ES-I-F1-100 0.07 (0.31) – 100 (445) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-F1-150 0.11 (0.49) – 150 (750) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-F1-250 0.176 (0.78) – 250 (1250) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request

Size 2 (shaft ends up to ø 1.5 inches max.)

Model Load Range – lbs (N) Max. Shaft ø in (mm) Drawings Price
ES-I-F2-75 0.005 (0.02) – 75 (375) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-F2-100 0.07 (0.31) – 100 (445) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-F2-150 * 0.11 (0.49) – 150 (750) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-F2-250 0.176 (0.78) – 250 (1250) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-F2-500 * 0.218 (0.97) – 500 (2500) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-F2-1000 0.309 (1.37) – 1,000 (5000) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request

*Standard ES-I Load Cells feature a 6 o’clock connector position and are available in the four load ranges marked above with *. Other connector positions and load ranges are available by request but will be subject to non standard lead times


Split Pillow Block Mount

Mounts to a machine frame via two bolts at the base of a split pillow block clamp, on top of the machine frame. The mount provides additional support and rigidity.

Standard Split Pillow Block Mount ES-I Load Cells are available to ship within 1 week from the time an order is received *

Available Load Ranges & Drawings

Size 0 (shaft ends up to ø 1.125 inches max.)

Model Load Range – lbs (N) Max. Shaft ø in (mm) Drawings Price
ES-I-P0-10 0.006 (0.027) – 10 (50) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-P0-25 0.02 (0.09) – 25 (125) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-P0-50 * 0.03 (0.13) – 50 (250) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-P0-75 0.05 (0.22) – 75 (375) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-P0-100 0.04 (0.18) – 100 (445) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request
ES-I-P0-150 * 0.10 (0.44) – 150 (750) 1.125 (28.575) PDF DWG SLDPRT STEP Price Request

Size 1 (shaft ends up to ø 1.5 inches max.)

Model Load Range – lbs (N) Max. Shaft ø in (mm) Drawings Price
ES-I-P1-100 0.07 (0.31) – 100 (445) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-P1-150 0.10 (0.44) – 150 (750) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-P1-250 0.16 (0.71) – 250 (1250) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request

Size 2 (shaft ends up to ø 1.5 inches max.)

Model Load Range – lbs (N) Max. Shaft ø in (mm) Drawings Price
ES-I-P2-75 0.05 (0.22) – 75 (375) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-P2-100 0.07 (0.31) – 100 (445) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-P2-150 * 0.10 (0.44) – 150 (750) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-P2-250 0.16 (0.71) – 250 (1250) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-P2-500 * 0.32 (1.42) – 500 (2500) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request
ES-I-P2-1000 0.65 (2.89) – 1,000 (5000) 1.5 (38.099) PDF DWG SLDPRT STEP Price Request

*Standard ES-I Load Cells feature a 6 o’clock connector position and are available in the four load ranges marked above with *. Other connector positions and load ranges are available by request but will be subject to non standard lead times.
