• V Series Tension Brakes

    The V Brake

  • V Series Tension Brakes

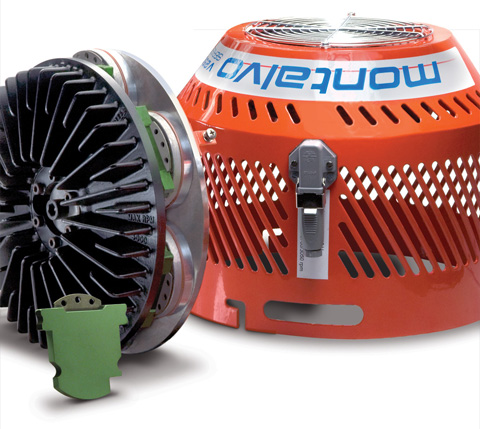

    V Brake with V Pad & Optional Fan Cover

  • V Series Tension Brakes

    Snap Out Snap In Tool-less Pad Changes

V Series Tension Brakes

From bolt to disc to pad, the V-Brake is designed to increase your productivity. No other brake in the industry is as easy to install, operate, and maintain as the V-Brake. Maintaining your V-Brake takes only seconds with Montalvo’s exclusive “snap-out, snap-in” brake pad changes. Performance & Productivity in perfect unison.

  • Overview
  • Models & Drawings
  • Documents
  • Videos

Easy Installation
Drill and tap 2 holes in your mounting surface and install the anti-rotation studs. Slide brake onto the keyed shaft. Tighten set screws. V-Brake Installed.

Wide Torque Range
From 1.4 to 16,726 in-lb the V-Brake is available in four different models to meet the needs of practically any application. Get the performance you need with the V Tension Brake.

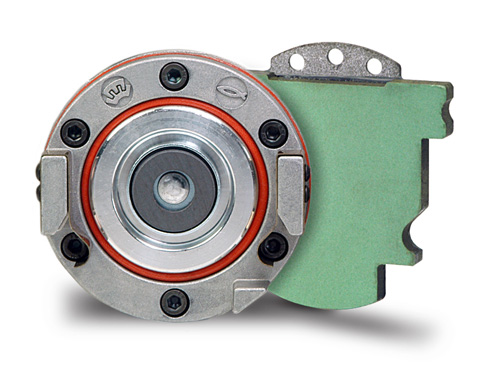

The V Pad
A game changer in the industry: No tools required to change every pad on your V-Brake. Just snap-out your old pads and snap-in the new ones. In only seconds every pad is changed.

Bi-Directional Operation
Unwind from the top or bottom of your roll.

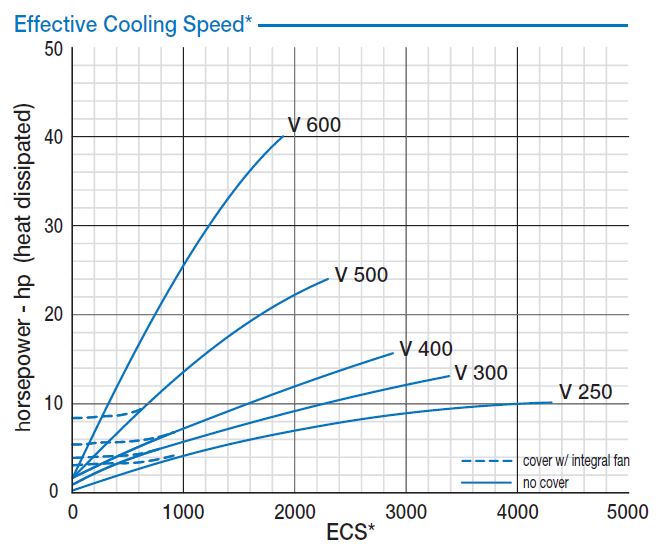

Increased Cooling Capacity
The V-Brake succeeds where others fail. Even with high-torque at low speeds the V Tension Brake provides precise control. The V-Brake cover can also be fitted with a built in fan to provide users even greater cooling capacity.

High Heat Dissipation & Thermal Capacity Discs
Montalvo’s signature high thermal capacity discs combined with a patented fin design provides maximum heat dissipation to keep your V-Brake operating at the highest quality.

Immediately Operational
The V Tension Brake arrives ready for installation as a complete unit: safety cover and all.

For additional information on the V-Series Tension Brakes please download the V Series Datasheet.

V-250 Tension Brake

The V250 Model of Tension Brakes is capable of providing up to 2,880 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (1-6) and the friction pad coefficient.

Overview

Total Torque Range (in-lb) Shaft Size Range Disc Diameter Drawings
1.4 – 2,880 7/8″ – 1.5″ 10.7″ PDF DWG SLDPRT STEP

Torque Ranges

Model Quote Request Brake Torque by Friction Pad Coefficient
Low COF Medium COF High COF**
Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb)
V-251 Quote 1.4 107 4.3 320 6.4 480
V-252 Quote 1.4 213 4.3 640 6.4 960
V-253 Quote 1.4 320 4.3 960 6.4 1,440
V-254 Quote 1.4 427 4.3 1,280 6.4 1,920
V-255 Quote 1.4 533 4.3 1,600 6.4 2,400
V-256 Quote 1.4 640 4.3 1,920 6.4 2,880

*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.


V-300 Tension Brake

The V300 Model of Tension Brakes is capable of providing up to 4,696 in-lb of torque depending on the amount and style of friction pads used. The torque chart below displays the relative torque output based on the number of friction pads (1-8) and the friction pad coefficient.

Overview

Total Torque Range (in-lb) Shaft Size Range Disc Diameter Drawings
1.7 – 4,696 1.25″ – 2″ 12.2″ PDF DWG SLDPRT STEP

Torque Ranges

Model Quote Request Brake Torque by Friction Pad Coefficient
Low COF Medium COF High COF**
Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb)
V-301 Quote 1.7 130 5.2 391 7.8 587
V-302 Quote 1.7 261 5.2 783 7.8 1,174
V-303 Quote 1.7 391 5.2 1,174 7.8 1,761
V-304 Quote 1.7 522 5.2 1,565 7.8 2,348
V-305 Quote 1.7 652 5.2 1,957 7.8 2,935
V-306 Quote 1.7 783 5.2 2,348 7.8 3,522
V-307 Quote 1.7 913 5.2 2,740 7.8 4,109
V-308 Quote 1.7 1,044 5.2 3,131 7.8 4,696

*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.


V-400 Tension Brake

The V400 Model of Tension Brakes is capable of providing up to 7,021 in-lb of torque depending on the amount and style of friction pads used. The torque chart below displays the relative torque output based on the number of friction pads (1-10) and the friction pad coefficient.

Overview

Total Torque Range (in-lb) Shaft Size Range Disc Diameter Drawings
2.1 – 7,021 1-3/8″ – 2.5″ 14.2″ PDF DWG SLDPRTSTEP

Torque Ranges

Model Quote Request Brake Torque by Friction Pad Coefficient
Low COF Medium COF High COF**
Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb)
V-401 Quote 2.1 156 6.2 468 9.4 702
V-402 Quote 2.1 312 6.2 936 9.4 1,404
V-403 Quote 2.1 468 6.2 1,404 9.4 2,106
V-404 Quote 2.1 624 6.2 1,872 9.4 2,808
V-405 Quote 2.1 780 6.2 2,340 9.4 3.510
V-406 Quote 2.1 936 6.2 2,808 9.4 4,212
V-407 Quote 2.1 1,092 6.2 3,276 9.4 4,915
V-408 Quote 2.1 1,248 6.2 3,744 9.4 5,617
V-409 Quote 2.1 1,404 6.2 4,212 9.4 6,319
V-410 Quote 2.1 1,560 6.2 4,681 9.4 7,021

*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.


V-500 Tension Brake

The V500 Model of Tension Brakes is capable of providing up to 10,692 in-lb of torque depending on the amount and style of friction pads used. The torque chart below displays the relative torque output based on the number of friction pads (1-12) and the friction pad coefficient.

Overview

Total Torque Range (in-lb) Shaft Size Range Disc Diameter Drawings
2.9 – 10,692 2″ – 3.75″ 18.2″ PDF DWG SLDPRT STEP

Torque Ranges

Model Quote Request Brake Torque by Friction Pad Coefficient
Low COF Medium COF High COF**
Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb)
V-501 Quote 3 198 8 594 12 891
V-502 Quote 3 396 8 1,188 12 1,782
V-503 Quote 3 594 8 1,782 12 2,673
V-504 Quote 3 792 8 2,376 12 3,564
V-505 Quote 3 990 8 2,970 12 4,455
V-506 Quote 3 1,188 8 3,564 12 5,346
V-507 Quote 3 1,386 8 4,158 12 6,237
V-508 Quote 3 1,584 8 4,752 12 7,128
V-509 Quote 3 1,782 8 5,346 12 8,019
V-510 Quote 3 1,980 8 5,940 12 8,910
V-511 Quote 3 2,178 8 6,534 12 9,801
V-512 Quote 3 2,376 8 7,128 12 10,692

*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.


V-600 Tension Brake

The V600 Model of Tension Brakes is capable of providing up to 16,726 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (1-16) and the friction pad coefficient.

Overview

Total Torque Range (in-lb) Shaft Size Range Disc Diameter Drawings
3.1 – 16,626 2.5″ – 4.5″ 22″ PDF DWG SLDPRT STEP

Torque Ranges

Model Quote Request Brake Torque by Friction Pad Coefficient
Low COF Medium COF High COF**
Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb)
V-601 Quote 3.1 230 9.1 695 14.0 1,045
V-602 Quote 3.1 465 9.1 1,395 14.0 2,090
V-603 Quote 3.1 695 9.1 2,090 14.0 3,135
V-604 Quote 3.1 930 9.1 2,788 14.0 4,180
V-605 Quote 3.1 1,161 9.1 3,485 14.0 5,225
V-606 Quote 3.1 1,393 9.1 4,180 14.0 6,273
V-607 Quote 3.1 1,623 9.1 4,878 14.0 7,315
V-608 Quote 3.1 1,858 9.1 5,575 14.0 8,363
V-609 Quote 3.1 2,090 9.1 6,273 14.0 9,408
V-610 Quote 3.1 2,323 9.1 6,965 14.0 10,453
V-611 Quote 3.1 2555 9.1 7,661 14.0 11,499
V-612 Quote 3.1 2,788 9.1 8,358 14.0 12,544
V-613 Quote 3.1 3,020 9.1 9,055 14.0 13,589
V-614 Quote 3.1 3,252 9.1 9,751 14.0 14,635
V-615 Quote 3.1 3,485 9.1 10,448 14.0 15,680
V-616 Quote 3.1 3,717 9.1 11,144 14.0 16,726

*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.
