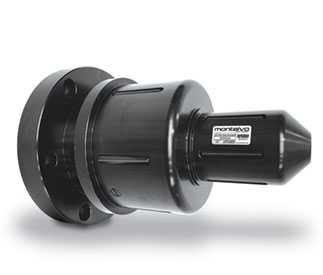

    AA Dual Core Chuck

Axial Activated Core Chucks

Defender AA Core Chucks are cost-effective, rugged, and durable core chucks capable of withstanding even the dustiest environments while being simple to utilize. An exclusive “safe lock” model expands the capabilities of our AA core chucks by resolving any potential risk of the core not fully tightening and ensuring the roll is always perfectly concentric.

  • Overview
  • Models & Drawings
  • Safe Lock Models
  • Documents

Rapid Expansion Jaws
Ensure Secure Roll Control Immediately Upon Engagement.

Rugged, Durable, Dependable Performance for Lower Total Cost of Ownership

Dual Core Models
For Processes Utilizing Multiple Core Sizes – one chuck, two core sizes.

E-Flange™ Option
Eliminates Operator Interaction of Removing Cores While Making Core Ejection Fast and Easy; reducing the risk of jammed cores.

Photocell Ready™ Option
Allows Use of Photocell Or Other Sensors.

Customer Specified Mounting Holes/Flange
Ready for Immediate Installation Upon Delivery.

Capable of Withstanding Harsher Environments

High-Quality Plated Steel Construction
Provides Long Service Life Requiring Minimal Maintenance.

Drop-In Replacement Design
For Easy Upgrading of Existing Installations.

For additional information on our Axial Activated Core Chucks download the Datasheet.

Single Core

For roll weights up to 40,400 lbs (180,000 N)

AA Single Core Models

Model # Core
in (mm)		 Max. Load
lb (N)		 Max. Torque
in-lb (Nm)		 Drawings Price Request
AA-S-3 3
(76)		 2,700
(12,000)		 2,212
(250)		 Request AA-S-3 Drawing Quote
AA-S-4 4
(100)		 6,069
(27,000)		 9,735
(1,100)		 Request AA-S-4 Drawing Quote
AA-S-5 5
(127)		 11,240
(50,000)		 22,126
(2,500)		 Request AA-S-5 Drawing Quote
AA-S-6 6
(150)		 16,860
(75,000)		 26,552
(3,000)		 Request AA-S-6 Drawing Quote
AA-S-10 10
(254)		 22,480
(110,000)		 106,209
(12,000)		 Request AA-S-10 Drawing Quote
AA-S-12 12
(300)		 33,721
(150,000)		 18,000 (159,313) Request AA-S-12 Drawing Quote

*70mm and 355mm Core Models Available Upon Request

Single Core with E-Flange Option

For roll weights up to 6,069 lbs (27,000 N)

AA Single Core with E-Flange Models

Model # Core
in (mm)		 Max. Load
lb (N)		 Max. Torque
in-lb (Nm)		 Drawings Price Request
AA-S-3-E 3
(76)		 2,700
(12,000)		 2,212
(250)		 Request AA-S-3-E Drawing Quote
AA-S-4-E 4
(100)		 6,069
(27,000)		 9,735
(1,100)		 Request AA-S-4-E Drawing Quote

Dual Core Photocell Ready Option Available

For roll weights up to 16,860 lbs (75,000 N)

AA Dual Core Models

Model # Core’s
in (mm)		 Max. Load
lb (N)		 Max. Torque
in-lb (Nm)		 Drawings Price Request
AA-D-34 3 & 4 1,686/5,620
(7,500/25,000)		 2,212/9,735
(250/1,100)		 Request AA-D-34 Drawing  Quote
AA-D-34-PC 3 & 4 1,686/5,620
(7,500/25,000)		 2,212/9,735
(250/1,100)		 Request AA-D-34-PC Drawing  Quote
AA-D-36 3 & 6 3,372/16,860
(15,000/75,000)		 2,212/26,552
(250/3,000)		 Request AA-D-36 Drawing  Quote
AA-D-46 4 & 6 5,620/16,860
(25,000/75,000)		 9,735/26,552
(1,100/3,000)		 Request AA-D-46 Drawing  Quote
AA-D-612 6 & 12 16,860/33,721
(75,000/150,000)		 26,552/159,313
(3,000/18,000)		 Request AA-D-612 Drawing  Quote

*PC = Photocell Ready Model

Dual Core with E-Flange™ and/or Photocell Ready Option

For roll weights up to 16,860 lbs (75,000 N)

AA Dual Core with E-Flange™ Models

Model # Core’s
in (mm)		 Max. Load
lb (N)		 Max. Torque
in-lb (Nm)		 Drawings Price Request
AA-D-34-E 3 & 4 5,620/16,860
(25,000/75,000)		 2,212/9,735
(250/1,100)		 Request AA-D-34-E Drawing Quote
AA-D-34-EPC 3 & 4 5,620/16,860
(25,000/75,000)		 2,212/9,735
(250/1,100)		 Request AA-D-34-EPC Drawing Quote

*E = E-Flange, EPC = E-Flange and Photocell Ready Model

The exclusive Defender Series “Safe Lock” Chuck expands the capabilities of our axial side load core chucks by resolving any potential risk of the core not fully tightening and ensuring the roll is always perfectly concentric. By preventing the lugs from engaging until the roll is fully pushed against the flange of the chuck, the risk of cores not being 100% tightened against the chuck is eliminated, ensuring maximum safety and gripping performance for reduced downtime, reduced core damage, maximum safety, and higher performance.

Single Core Safe Lock Version

For roll weights up to 6,069 lbs (27,000 N)

AA Single Core Safe Lock Version Models

Model # Core
in (mm)		 Max. Load
lb (N)		 Max. Torque
in-lb (Nm)		 Drawings Price Request
AA-S-4-SL 4
(101)		 6,069
(27,000)		 9,735
(1,100)		 Request AA-S-4-SL Drawing  Quote

*SL = Safe Lock

Single Core Safe Lock Model with E-Flange™ Option

For roll weights up to 16,860 lbs (75,000 N)

AA Dual Core with E-Flange™ and/or Photocell Ready Option Models

Model # Core
in (mm)		 Max. Load
lb (N)		 Max. Torque
in-lb (Nm)		 Drawings Price Request
AA-S4-SLE 4
(100)		 6,069
(27,000)		 9,735
(1,100)		 RequestAA-S4-SLE Drawing  Quote

*SLE = Safe lock and E-Flange (Ejector Flange option)
