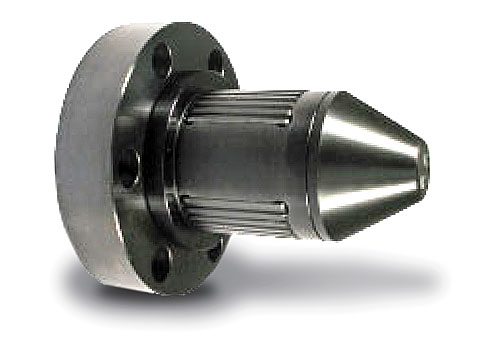

    Torque Activated Core Chuck

  • Torque Activated Core Chucks

    TA Core Chuck with Ejector Flange

  • Torque Activated Core Chucks

    TA Core Chuck with Kicker Spring

  • Torque Activated Core Chucks

    Torque Activated Dual Core Chuck

  • Torque Activated Core Chucks

    TA Core Chuck with Swappable Modular Cores

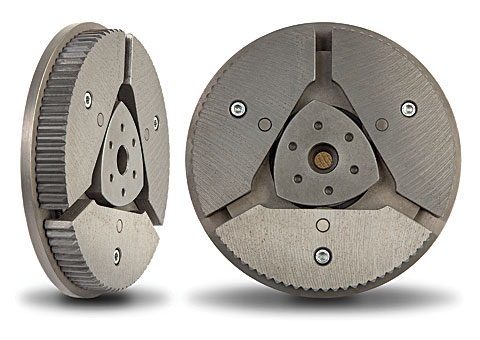

Torque Activated Core Chucks

Self-expanding and self-blocking Torque Activated Core Chucks engage the core as a result of the reel’s rolling action making it ideal for light or heavy continuous duty shaftless unwind or rewind applications. D-TA Core Chucks are also available with Modular Adapters when working with multiple core sizes up to 12″.

  • Overview
  • Models & Drawings
  • Modular Series
  • Documents

Montalvo’s Torque Activated Core Chucks are ideal for continuous light duty or heavy duty shaftless unwind or rewind applications (i.e. sheeting, paper, laminating, etc) for precise, consistent tension control from full roll to core.

Drop-In Replacement Design
For easy upgrading of existing installations

No Operator Interaction, Tools, or Air Required for Expansion, Retraction, and Disengagement

Industry Leading Jaw Expansion Even At Low Torque

Superior Construction
Featuring forged steel, a high load capacity, and greater durability in harsh or dusty environments, while still being highly cost-effective.

Bi-directional Operation
Jaw expansion is designed to activate with roll rotation in either direction

Easy Removal and Insertion
Reduces risk of jammed cores and saves you time

Single Diameter or Dual Diameter Models Available

Automatic Core Releases
TA Core Chucks are available with Flange Ejector or Kicker Spring for automatic core releases

Wider Lugs
Ensure minimal to no damage

Smooth Lugs/Jaws Available

Rugged, Durable, Dependable Performance for Lower Total Cost of Ownership

High Performance and Quality Even in Dusty Environments

Extended Product Life
Heat treated components reduces mechanical wear and corrosion

Core Sizes from 3” to 6” (up to 12” in Modular Series)

For additional information on our Torque Activated Core Chucks download the Datasheet.

Single Core

For roll weights up to 24,728 lbs (110,000 N)

TA Single Core Models

Model # Core
in (mm)		 Expansion Range
in (mm)		 Max. Load
lb (N)		 Max. Torque
in-lb (Nm)		 Drawings Price Request
TA-S-3 3 (76) 2.95-3.31 (75-84) 4,046 (18,000) 10,178 (1,150) PDF STEP Quote
TA-S-4 4 (100) 3.88-4.21 (98.5-107) 8,317 (37,000)  22,126 (2,500) PDF DWG STEP Quote
TA-S-6 6 (152) 5.85-6.22 (148.5-158) 24,728 (110,000) 44,253 (5,000)  PDF DWG SLDPRT STEP Quote

*70mm, 100mm, 150mm Core model’s also available

Single Core with E-Flange Option

For roll weights up to 8,317 lbs (37,000 N)

TA Single Core with E-Flange Models

Model # Core
in (mm)		 Max. Load
lb (N)		 Max. Torque
in-lb (Nm)		 Drawings Price Request
TA-S-3-E 3 (76) 4,046 (18,000) 10,178 (1,150) PDF  Quote
TA-S-4-E 4 (100) 8,317 (37,000) 22,126 (2,500) Request TA-S-4-E Drawing  Quote
TA-S-6-E 6
(152)		 24,728
(110,000)		 44,253
(5,000)		 Request TA-S-6-E Drawing  Quote

*100mm Core model also available

Single Core with Kicker Spring Option

For roll weights up to 24,728 lbs (110,000 N)

TA Single Core Kicker Spring Models

Model # Core
in (mm)		 Expansion Range
in (mm)		 Max. Load
lb (N)		 Max. Torque
in-lb (Nm)		 Drawings Price Request
TA-S-4-K 4 (100) 3.88-4.21 (98.5-107) 8,317 (37,000) 22,126 (2,500) Request TA-S-4-K Drawing  Quote
TA-S-6-K 6 (152) 5.85-6.22 (148.5-158) 24,728 (110,000) 44,253 (5,000) Request TA-S-6-K Drawing  Quote

*100mm Core model also available

Dual Core

For roll weights up to 8,317/24,728 lbs (37,000/110,000 N)

TA Dual Core Models

Model # Cores Expansion Max.
in (mm)		 Max. Load
lb (N)		 Max. Torque
in-lb (Nm)		 Drawings Price Request
TA-D-3/4 3” & 4” 3.31/4.29
(84/109)		 4,046/8,317
(18,000/37,000)		 10,178/22,126
(1,150/2,500)		 DWG  Quote
TA-D-3/6 3” & 6” 3.31/4.29
(84/109)		 4,046/24,728
(18,000/110,000)		 10,178/44,253
(1,150/5,000)		 Request TA-D-3/6 Drawing Quote
TA-D-4/6 4” & 6” 4.21/6.26
(107/159)		 8,317/24,728
(37,000/110,000)		 22,126/44,253
(2,500/5,000)		 PDF Quote

*68mm/148mm, and 98mm/297mm Core models also available



Modular Core

For applications utilizing a variety of core sizes, our Modular Series which features a wide range of adapters for core sizes from 3” to 12”. Core Adapters can be quickly and easily changed without having to remove the entire chuck from the machine frame, reducing downtime and the risk of injury from additional lifting. For roll weights up to 24,728 lbs (110,000 N)

Model # HUB –
inches		 Core Size –
in (mm)		 Expansion Range
in (mm)		 Max. Load
lb (N)		 Max. Torque
in-lb (Nm)		 Cage Material Drawings Price Request
TA-M-3-3 3 3″ (76) 2.91-3.21
(74-81.5)		 18,000 (4,046) 1,150 (10,178) Steel PDF DWG Quote
TA-M-4-3 3 4″ (100) 3.86-4.19
(98-106.5)		 18,000 (4,046) 1,150 (10,178) Steel DWG  Quote
TA-M-6-3 3 6″ (150) 5.83-6.16
(148-156.5)		 18,000 (4,046) 1,150 (10,178) Steel PDF DWG  Quote
TA-M-12-3 3 12″ (300) 11.89-12.20
(302-310)		 18,000 (4,046) 1,150 (10,178) Aluminum PDF DWG  Quote
TA-M-4-4 4 4″ (100) 3.86-4.21
(98-107)		 37,000 (8,317) 2,500 (22,126) Steel Request TA-M-4-4 Drawing  Quote
TA-M-6-4 4 6″ (150) 5.83-6.14
(148-156)		 37,000 (8,317) 2,500 (22,126) Steel Request TA-M-6-4 Drawing  Quote
TA-M-8-4 4 8″ (200) 7.8-8.11
(198-206)		 37,000 (8,317) 2,500 (22,126) Aluminum Request TA-M-8-4 Drawing  Quote
TA-M-10-4 4 10″ (245) 9.76-10.08
(248-256)		 37,000 (8,317) 2,500 (22,126) Aluminum Request TA-M-10-4 Drawing  Quote
TA-M-12-4 4 12″ (300) 11.89-12.2
(302-310)		 37,000 (8,317) 2,500 (22,126) Aluminum Request TA-M-12-4 Drawing  Quote
TA-M-6-6 6 6″ (150) 5.83-6.16
(148-156.5)		 110,000 (24,728) 5,000 (44,253) Steel Request TA-M-6-6 Drawing  Quote
TA-M-8-6 6 8″ (200) 7.8-8.13
(198-206.5)		 110,000 (24,728) 5,000 (44,253) Aluminum Request TA-M-8-6 Drawing  Quote
TA-M-10-6 6 10″ (245) 9.76-10.08
(248-256)		 110,000 (24,728) 5,000 (44,253) Aluminum Request TA-M-10-6 Drawing  Quote
TA-M-12-6 6 12″ (300) 11.89-12.22
(302-310.5)		 110,000 (24,728) 5,000 (44,253) Aluminum Request TA-M-12-6 Drawing  Quote

*68mm, and 297mm model’s also available
